Description

PRODUCT DESCRIPTION

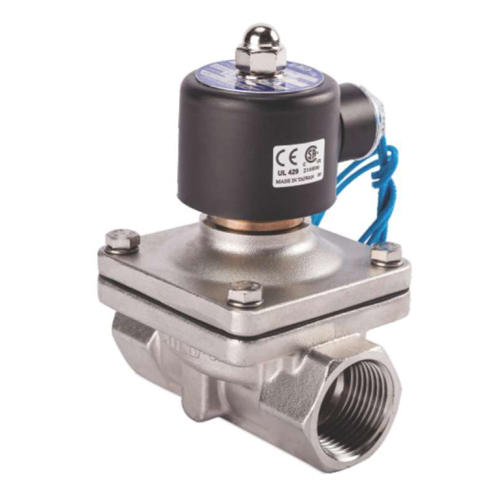

• SUW series is direct, multiplex, connected diaphragm, conductive and normally
closed (NC) 2/2 way solenoid valve.
• Able to operate under low pressure
• Applied fluid type :water, air, light oil, gas, vacuum
• Acceptable for customization Viton (130"C), Silicone (130"() and EPDM (130"()
for seal plug and diaphragm
CAUTIONS:
• Before pipelining, the pipe line must be very clean without any contaminants or
impurity.
• To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
• AC voltage tolerance: ± 10%; DC voltage tolerance: ± 1%
• It should be installed horizontally; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
• Liquid status when it is in high temperature; solid status when it is in low temperature.
• Corrosive fluid
• Viscosity over 20cst
