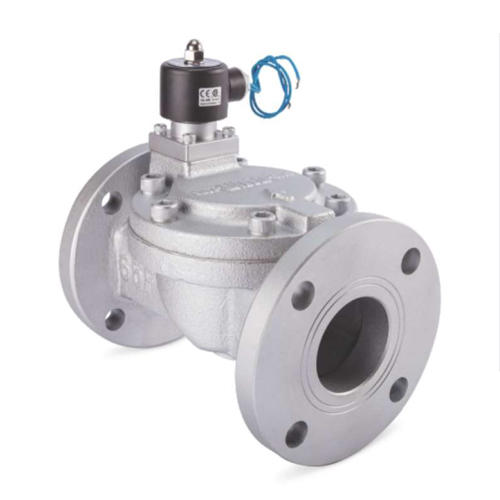

UNID Flanged end solenoid valve - UW-F
-
Brand:mit-UNID-cns
-
PARTS:MATERIAL
-
Coil:Special Copper Wire ( H class)
-
Tube:Stainless Steel
-
Spring:Stainless Steel
-
Core:Stainless Steel
-
Plug:NBR
-
Diaphragm:NBR
-
Valve body:Cast Iron (FC-20)
Description
CAUTIONS:
• Minimum pressure to open: over O.Skgf-cm'
• Before pipelining, the pipe line must be very clean without any contaminants or
impurity.
• To extend the lifetime,Y-Iine filter should be installed in the front end of solenoid
valve.
• AC voltage tolerance:± 10%; DC voltage tolerance: ± 1%
• It should be installed horizontally; vertical installation is not advisable.
Not Suitalbe For Fluid As Below:
• Liquid status when it is in high temperature; solid status when it is in low temperature.
• Corrosive fluid
• Viscosity over 20cst
